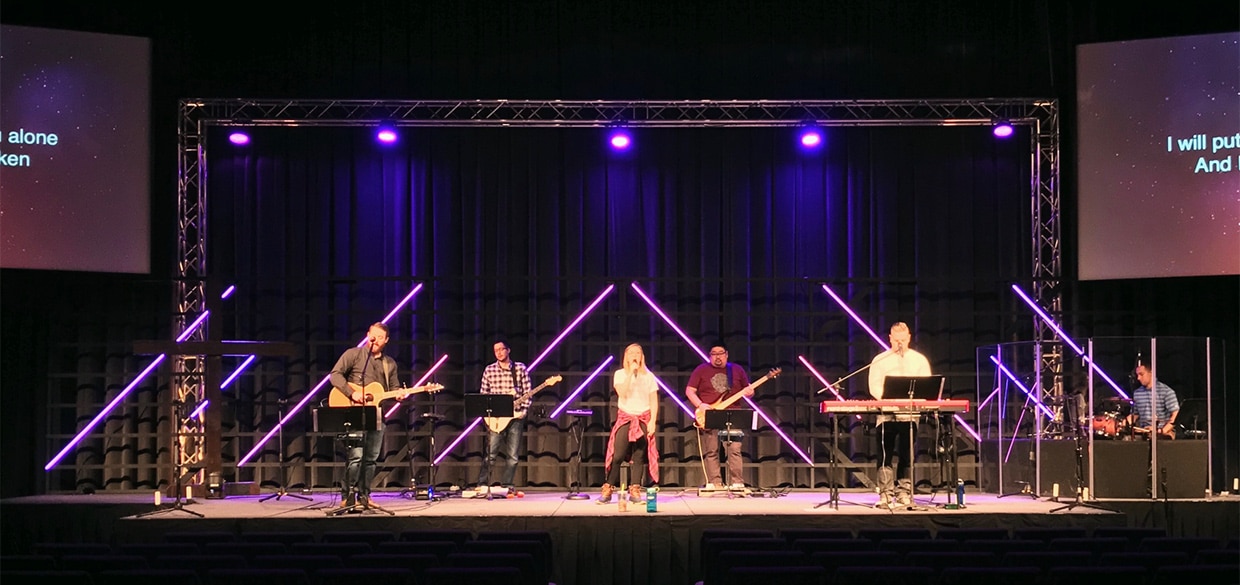

Allison DuBois from Mount Pleasant Community Church in Mount Pleasant, MI brings us this simple LED tape design.

From Allison: We got some of our amazing volunteers to build two 22 ft. long frames to fit across our 44 ft. stage. We painted the frames black and simply zip-tied them frames to our truss. The LED tape was the easiest part. We measured out how long we wanted each piece and cut them to the appropriate size. There are six longer strips (124.5 inch) and size shorter strips (1 meter) all on a 45 degree angle (that’s right we used the Pythagorean Theorem). We bought LED tape diffusers awhile ago from amazon (40 pack of one meter aluminum diffusers) and screwed those diffusers onto the frame to hold the LED tape. Everything after that was programming and hooking up each DMX box (one for each strip) to their appropriate channel so they can controlled from the lighting booth.

DMX Box: https://www.amazon.com/gp/product/B00B42M3RG/ref=as_li_ss_tl?ie=UTF8&psc=1&linkCode=sl1&tag=jscriptcom-20&linkId=72b6df01bd082207ee1174661a77131d

LED Tape: https://www.amazon.com/gp/product/B00DTOAWZ2/ref=as_li_ss_tl?ie=UTF8&psc=1&linkCode=sl1&tag=jscriptcom-20&linkId=cf535382ad83f9cfef7aefd4619625ab

Power Supply: https://www.amazon.com/gp/product/B00GUBVI9K/ref=as_li_ss_tl?ie=UTF8&psc=1&linkCode=sl1&tag=jscriptcom-20&linkId=b4752637aed2b0216580fb9d45e7672e

Power Supply Connectors: https://www.amazon.com/gp/product/B00CUKHN0S/ref=as_li_ss_tl?ie=UTF8&psc=1&linkCode=sl1&tag=jscriptcom-20&linkId=0818cf182b5eff1aad4711b48368f66c

Light Diffusers: https://www.amazon.com/gp/product/B06XWVVKDK/ref=as_li_ss_tl?ie=UTF8&psc=1&linkCode=sl1&tag=jscriptcom-20&linkId=56202962edd509563417bc732cf4e506

2 responses to DiagonaLED

  1. Hello, where did you purchase the stage curtains ?

  2. Hi there. Thank you for the detailed info.

    In programming these in our lighting software, do you know what the lighting profile is?
