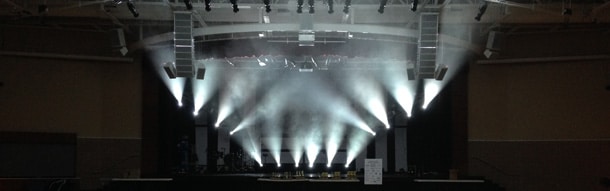

Alex Armstrong from Johnson Ferry Baptist Church in Marietta, GA brings us this cool lighting and stage design.

The backdrop was corrugated PVC. Alex drilled small holes and ran a safety cable through it to hang them.

Then they angled the two 10′ sticks of truss and hung four Mac 250’s and three single cyc bays on each side.

They used six Mac 250’s in the center in a line. To light the corrugated PVC pieces, he used one Chauvet Colorado1 tour on each piece and in the middle the Chauvet Tri Tour. There was one Chauvet Colorado1 Tour in each truss as a truss warmer.
