Spiked Rows

Clint Self, Grant Embury, Lucas Winkler, and Ben Pierce from Bethany Church in Baton Rouge, LA brings us this cool horizontal design.

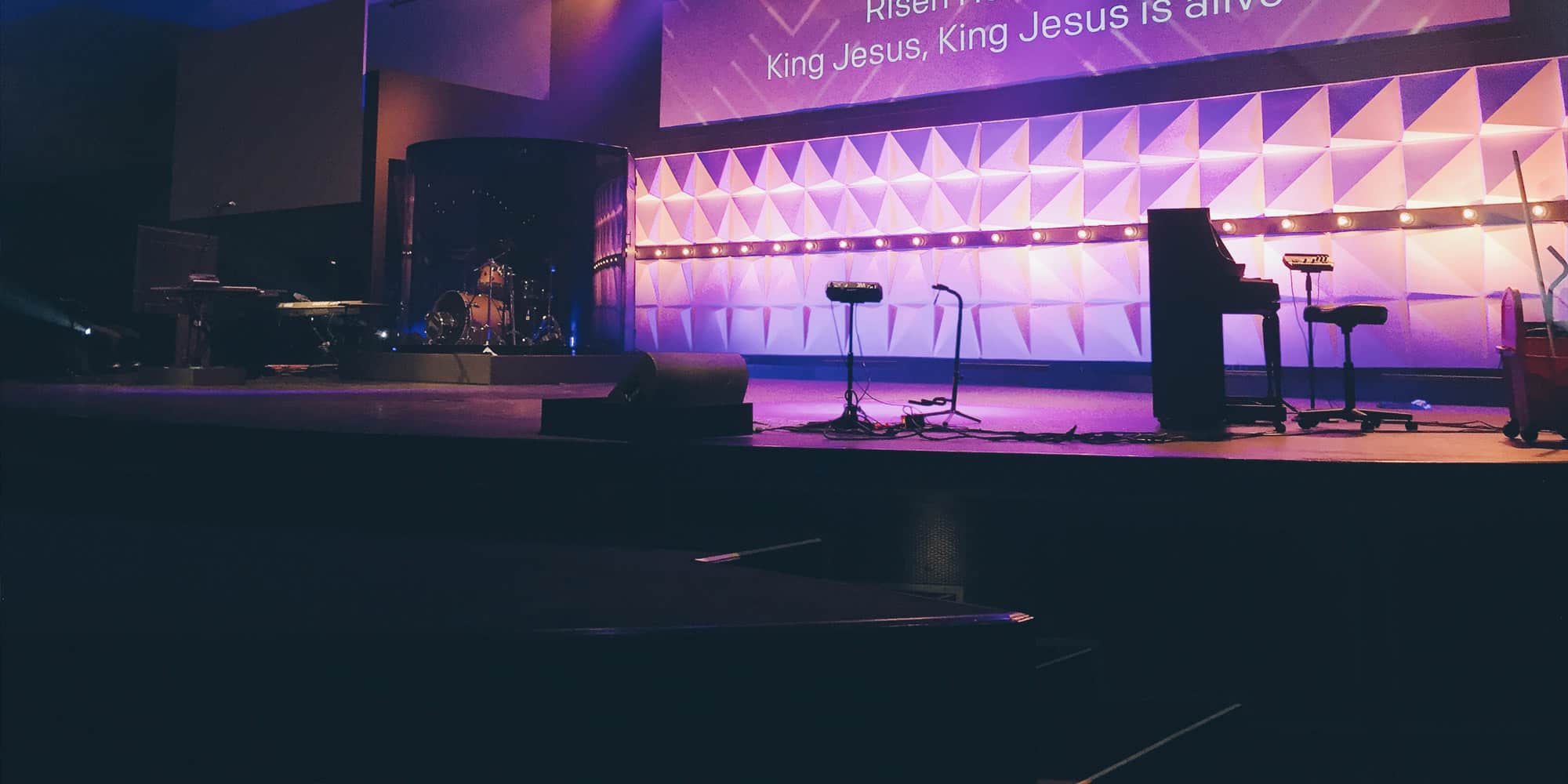

The design consists of a few elements. Firstly, the triangular tiles were Paperforms from Mio Culture. They were lit from the bottom with 6 Elation QW LED Strips, and from the sides with 2 Elation Platinum ZFX moving LED fixtures.

In the center, they had a line of 24 regular incandescent bulbs that they mounted to pieces of wood that they painted flat black.

Above the tiles, they had a custom triple-wide screen that they built. It had 3 Christie projectors shooting on it. The content was blended across the 3 projectors with ProPresenter and a TripleHead2Go module.

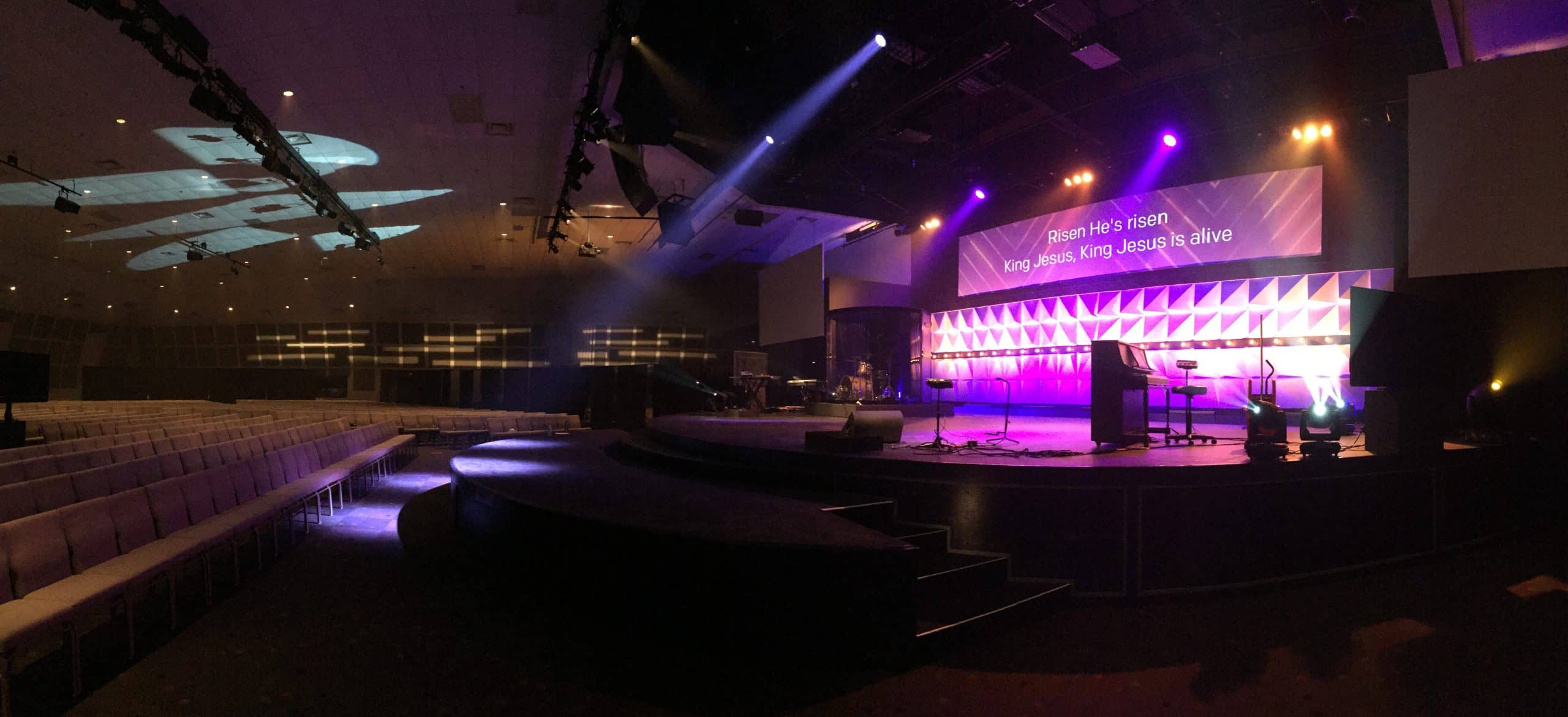

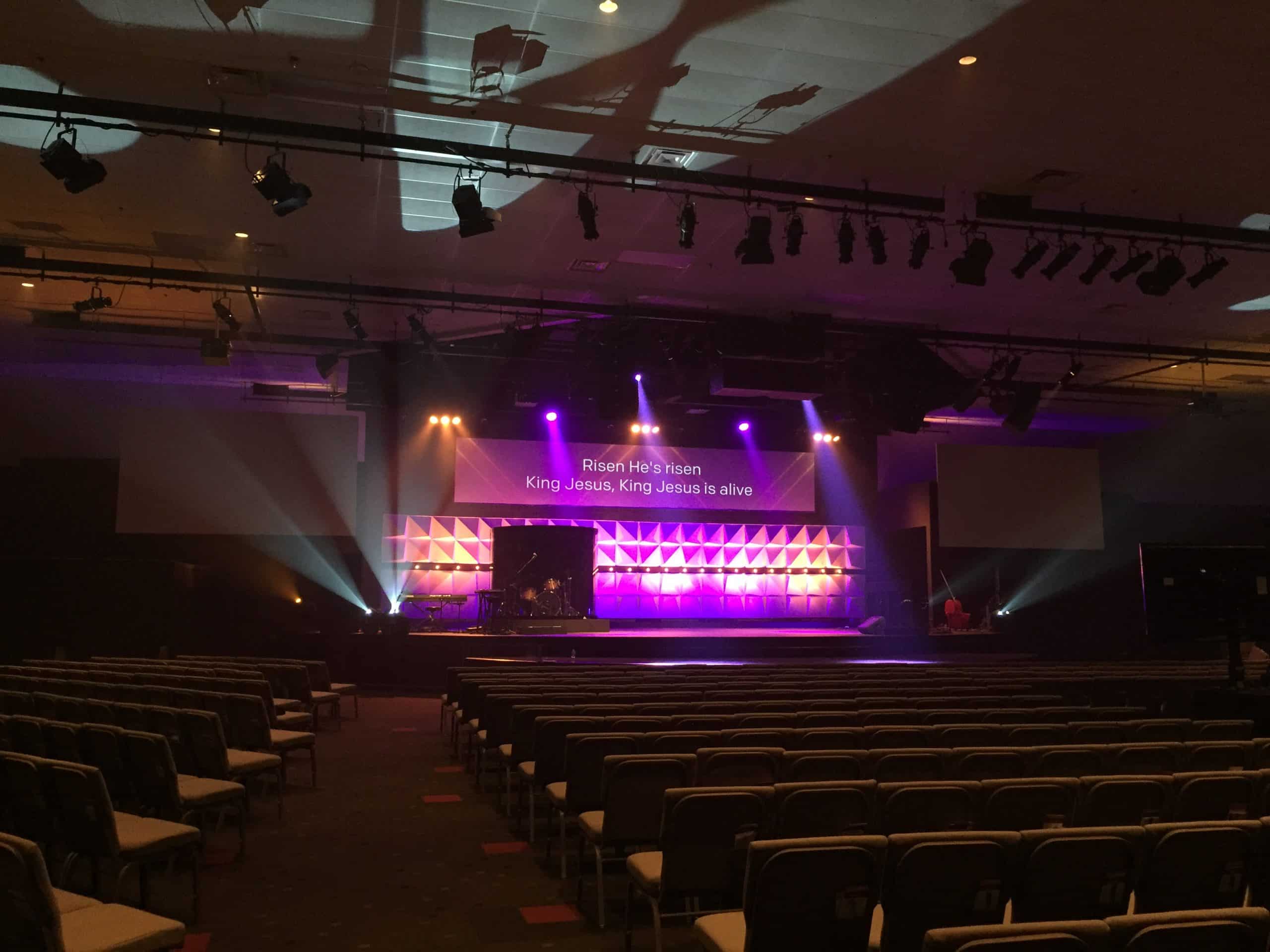

Above the stage on the back truss, they had 9 Chauvet SlimPar LEDs, 2 more Elation Platinum ZFXs, and 6 incandescent pars without any gels (used as “blinders”) (not lit in the picture). On the truss above the front of the stage, they had 2 Martin Mac 101s, that they used for backlighting. On the front of the floor off to the sides, they had 6 Elation Platinum 5R Spots, and 2 HighEnd X-Spot Extremes. And lastly, the drums were lit from inside the drum shield with 2 Venue LED Pars.

They used 2 separate hazers: a Diffusion DF-50 (oil based), and a Unique 2.1 (water based). And the console running the lights was an Avolites Pearl Expert Pro, running Titan 8.4.

Their budget was $2,500, but they were well below that at only around $700 for the tiles.

IMG_5082 IMG_5110 IMG_5122 IMG_5126 Processed with VSCOcam with hb1 preset Screen-Shot-2015-04-29-at-10.46.41-AM Screen-Shot-2015-04-29-at-10.50.42-AM Screen-Shot-2015-04-29-at-10.52.04-AM Screen-Shot-2015-04-29-at-10.52.37-AM
