Reflecting Out

Rene Rodriguez from The Connection Church in Buda, TX brings us this nice use of LED strips.

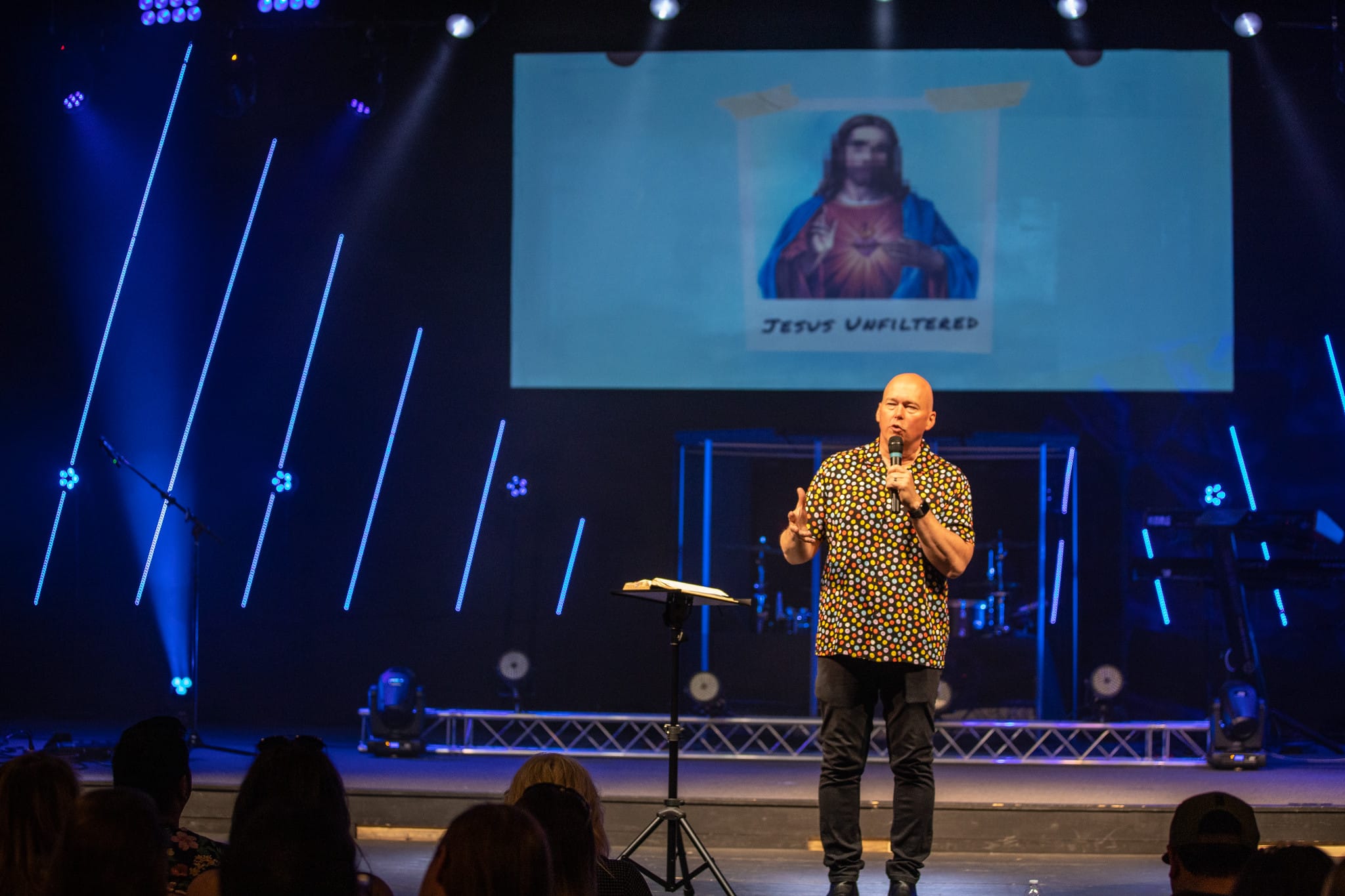

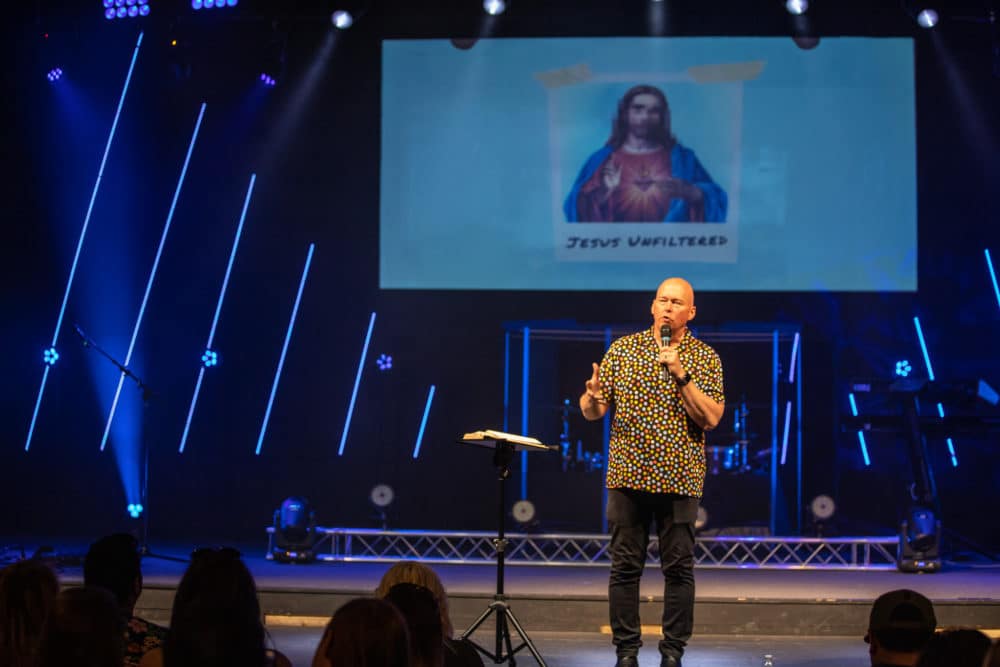

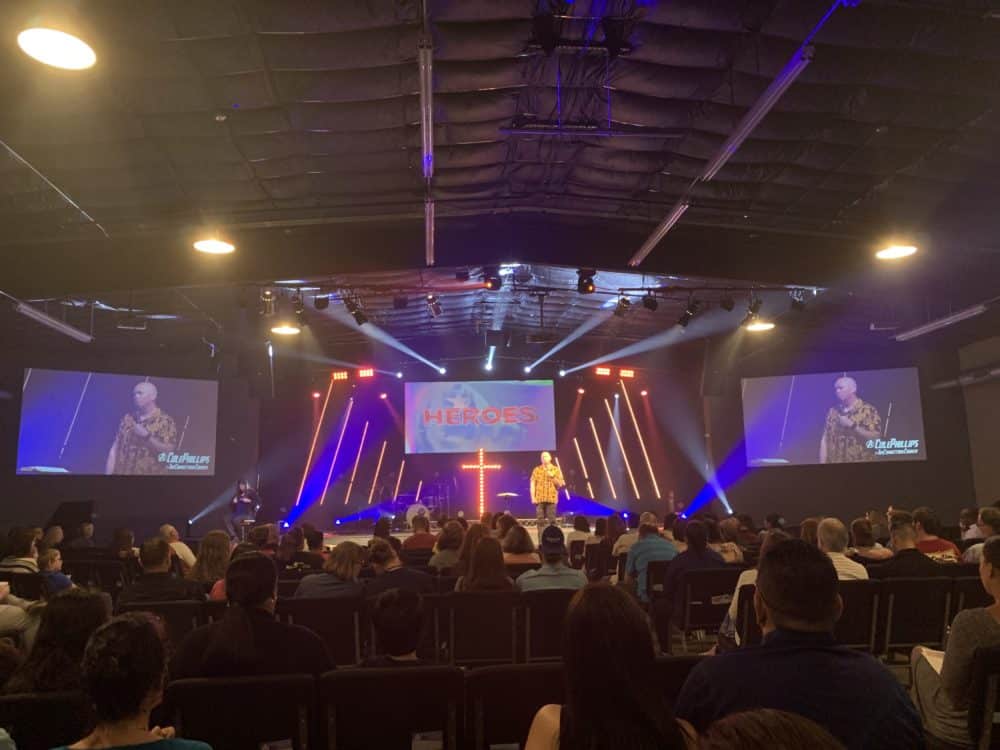

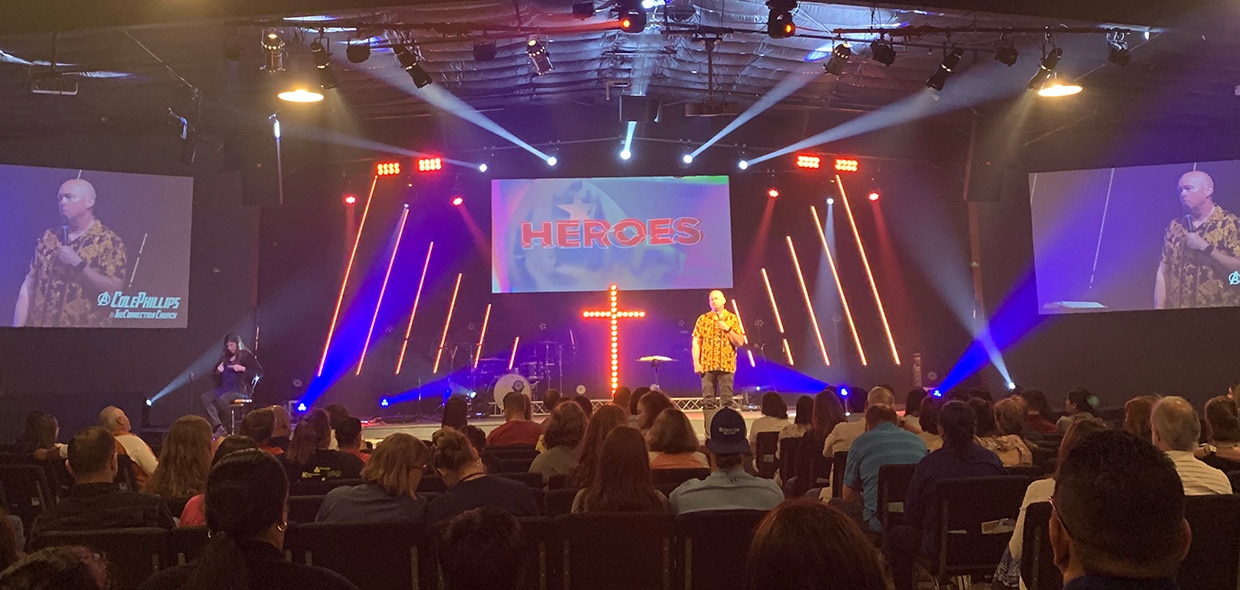

This was their set design for summer. They used 12 LED strips that they custom cut. They added those along with lighting they already had, and there you go!

Rene wired them with 24-channel DMX decoders on both sides, powered by power supplies, and controlled by their lighting console. Rene also used BTF-LIGHTING 4 Core 4pin wire connectors on the LED strips to make it easier to connect then used dolphin connecters for all the additional wiring.

2 responses to Reflecting Out

  1. Does each light need it’s own power supply or is there some way to daisy chain the power?

  2. Alexander Rodriguez June 13, 2019 at 11:10 am

    i used a 24 channel dmx encoder that all the led strip plug into then the encoder is plugged into 1 power supply and dmx .
