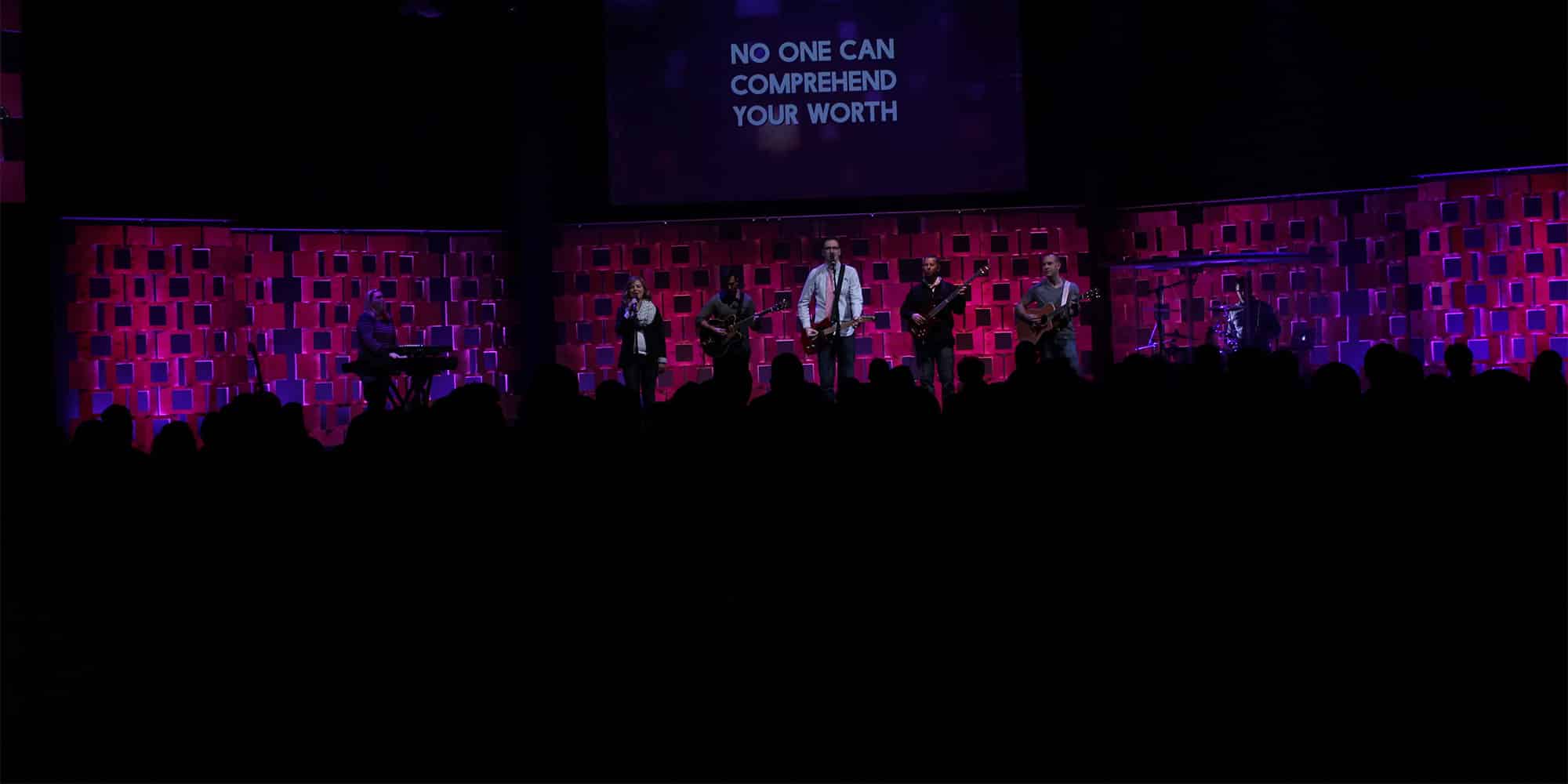

Jeff Abbott from Ada Bible Church in Grand Rapids, MI brings us these really cool wood screen panels. (originally posted October 2015)

Continuing with the desire to lean into using negative space, Jeff designed this wooden screen set.

Using 1x12x96 as the base material, they cut the wood into 18″ lengths and then CNCed a square hole in the panels. All the panels were then drilled with 1 of 2 hole configurations; holes in a line, or holes on an angle with a drilling fixture he designed. He had a local fabrication shop make the drill fixture for me.

Using 1/4″ wooden dowels the panels were pinned together using the dowels creating a free-standing structure.

Download the Sketchup file here.
