Tumbled Stage Design

Tumbled

Duncan Campbell from New Braunfels Church of Christ in New Braunfels, TX brings us this cool projection on cardboard boxes.

Materials:

-120 white cardboard boxes bought from papermart.com, 12″x12″x24″
-Masker-Aid software from CrowdControlGames.com
-8 Chauvet SlimPAR 64 lights, borrowed from another youth ministry
-64 square air conditioner filters for light towers
-3 8′ 2x4s to make the cross frame.
-2 Projectors, synced via a TripleHead2Go, borrowed from another youth ministry
-20m RGB led tape, controlled via MadMapper’s MadLight through an ENTTEC ODE and 24 channel LED Decoder, borrowed from another youth ministry
-White duct tape
-Black out vinyl sheeting from previous year
BUDGET: $600
SPENT: $340

From Duncan: San Antonio Work Camp, hosted by MacArthur Park Church of Christ, is an annual collaboration of area youth ministries to paint houses for low income families in greater San Antonio during the day, then worship at night. This year’s theme was “The Shaping” so I designed the stage to change every day in keeping with each night’s lesson. I created a custom mask using Masker-Aid each day after the stage was rearranged, so I could map video content to the boxes during worship. Air Filter light towers housed 4 of the pars. The other four pars lit the boxes when they weren’t being projection mapped.

-For the first night, I stacked the boxes flush.
-For the second night, I shifted the boxes to give more of a 3D look and create texture for shadows. At the end of the speaker’s talk, he (intentionally) pulled down the wall.

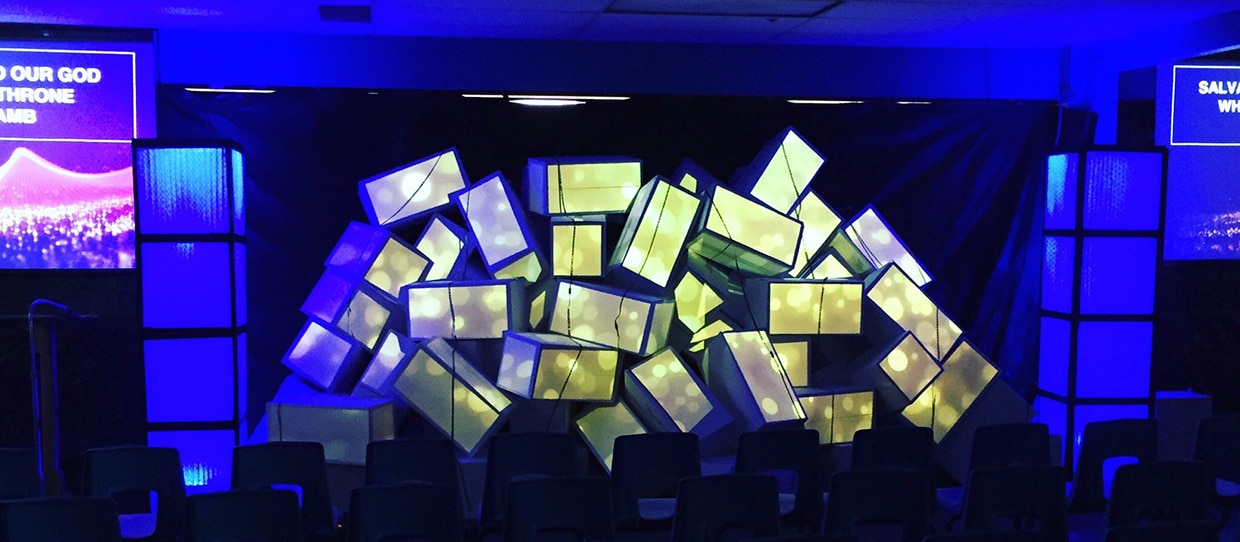

-For the third night, I arranged the boxes to resemble rubble. I used LED tape to augment the design.
-For the fourth night, I made a cross out of 2x4s. I cut holes in the sides of the boxes and threaded onto the cross frame. I arranged LED tape on the bottom of the cross to provide subtle uplighting.

1. Boxes were shipped flat and assembled by interns
2. The design was inspired by the SALT Conference in 2013.

IMG_0965 IMG_0966 IMG_0967 IMG_0972 IMG_0974 IMG_1006 IMG_1017 IMG_1036 IMG_1043 IMG_1044

5 responses to Tumbled

  1. Duncan – fantastic. Really beautiful. I love how you changed this up daily! For the third night (“rubble”), I don’t see where the LED tape is positioned – how did you use it? I see on the corners of the boxes, it looks like there is dark tape – or did you create that look via mapping? Finally – you mentioned two projectors – did you stack them for brightness?
    Again – really inspiring. I’d love to do something like this.

    • Duncan Campbell August 2, 2016 at 4:55 pm

      Hi Mark. The two projectors were mounted on a temporary truss towards the back of the room. I lined up the seam where the boxes met with the edges of the projectors so there wasn’t a need for edge blending. Yes, the effect on the edges of the boxes was just created with the mapping. It kinda gave it a window pane look. The pic of the LED tape didn’t get posted. I have a video of it; looks kind of lightning! Check out https://www.facebook.com/NBCOFCYOUTH to see it.

  2. Hey Duncan,

    This is AWESOME! Where are the projectors located??

    • Duncan Campbell August 2, 2016 at 4:57 pm

      Hi Clark,

      Thanks! Projectors were on a temporary truss mounted from the ceiling toward the back of the room. I put the edges of the projectors right on a seam in the boxes so no need to edge blend.

  3. This is so awesome. I saw the clips from salt ’13 .. cool that you changed up daily!
