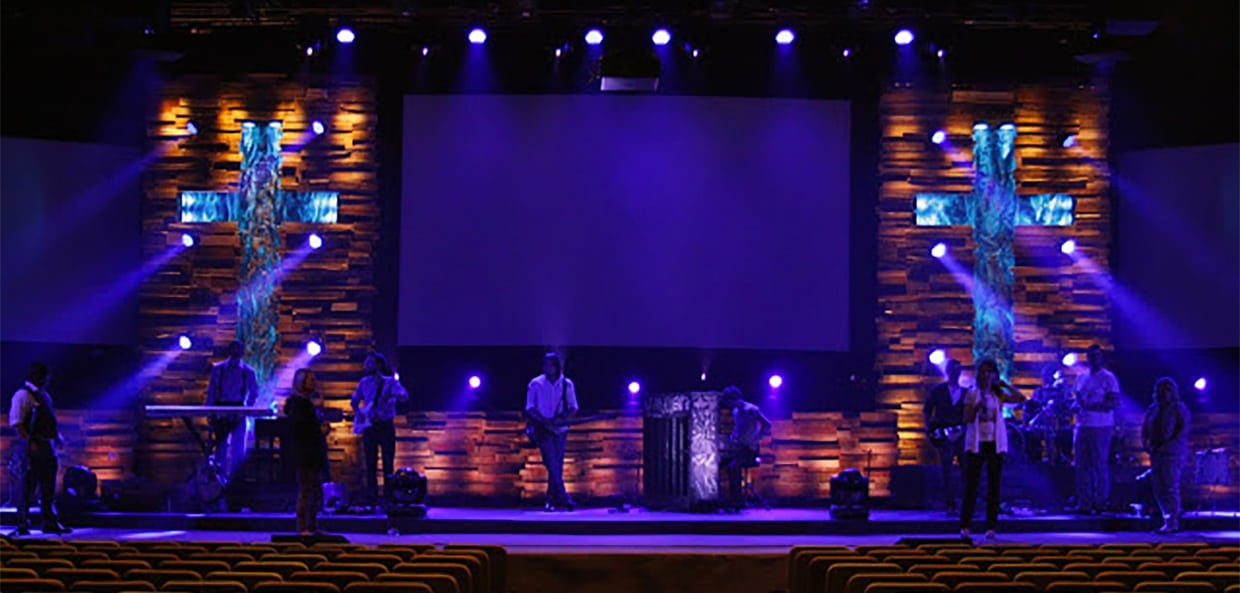

Steven Hall from Journey Church in Norman, OK brings us this great stage design from Easter. (Though it would work great all year round.)

From Steven:

Due to the scale of this build, we spread this set build out over 6 weeks. Our first week was pallet acquisition, the next 2 were pallet deconstruction, the next week was framing, the fourth week was covering our pieces with the pallets, and lastly we transported, hung, and lit the scenic pieces.

We used 70 2x4s, 20 sheets of 7/8″ OSB, 140 pallets, 50′ of Aluminum window screening, and over 15,000 screws, nails, and brads. Amazingly our set portion of the budget was only about $1000. We built the set in parts, 2 main wall sections (20′ x 11′), 5 smaller panels (4’x8′), 2 small panels (2’x 4′, and 6 deck surrounds (3- 1’x 8′, 3- 2’x8′)

Our complete set and lighting budget was $2500.

Easily the most time consuming part of our set build was disassemble the pallets. We collected and dis-assembled 140 pallets. Over 5000 nails got pulled in the process of dis-assembly. Although most nails pulled through the planks when removing them, we did learn near the end that bending the nails does work most of the time.

We found very quickly that pulling planks off then puling nails was going to take forever. So we resorted to cutting off the 2 sides of the pallets. We lost about 4 inches per side but only had to pull a third of the amount of nails. Way worth it!

Next, we built the frame. We built the outer frame to our desired dimensions first, then built the cross to our desired dimensions inside of that, then lastly added the needed bracing and studs. Once framed, we built the second large panel directly on top of the first, using it as our guide. We attached OSB to the frame using screw guns, so that we would have a nailing surface for the planks.

We also had the fore thought to paint the edges of our scenic black. This allowed us to miss a small section or have a gap near the end without it being noticeable to the congregation.

Planking (not the awkward photo pose) was probably the best part of the build. I mean seriously, you get to shoot things with a gun of nails. It was pretty fun stuff.

We developed process to get the depth, color variation, and randomness. First lay down a base layer. We used full pieces that varied in size shape in color, we tried to make sure few similar pieces touched. At this point, we didn’t worry about filling any gaps. This layer went fastest. Because we didn’t have to cut anything, we just grabbed pieces and nailed. On the large scenic structure, we chalked lines every 2 foot to ensure consistency . We used these lines to adjust and stay level as we went up.

In our next layer we overlapped over the gaps we had left in the first. We also cut to size the pieces we needed to fill the ends, large gaps, and anything we didn’t cover with the first planks.

Lastly, we added a few planks to vary the dimension and give it some uniqueness through out the set.

We found some of the coolest looking pallets ended up being the ones we got from construction sites. Most of them had Oklahoma red mud on them and gave some nice color. As you can see below, they really stick out and give it an interesting flavor (tasting is not advised).

In the void where the cross was, we used crumpled aluminum screening to create an indented and reflective surface. We lit it with 12 cheap American DJ leds per side. We used staples to attach the screening to the back of the frame. It gave us a nice 4″ depth separation from the planks.

Another thing we did to add some additional visual interest was to mount some mac 101s on the front of the scenic. I didn’t want to block much of the light that was washing the surface of the boards though so we built custom mounts.

The hope was to make the stand offs look rustic, kinda like rusty pipes. The 101s added a nice lower layer of lighting that I could use for scenic light, back light, and aerials.

Apart from the large crosses, we built 5- 4’x8′ flats to full under our screens.

We also built some risers for the keys and drums that were covered with pallet wood to complete the look.

The most challenging of the parts for this set was moving it and hanging it. All of which happened in one day.

The first was transporting the massive 20′ x 11′ set pieces from our offsite set garage to the Auditorium. Simply moving the set pieces was a feat. Once finished they weighed over 600 lbs a piece. We used furniture dollies and brute force to get them around.

Our other significantly difficult task was to hang them. Once in the room and onstage, we lifted the crosses one at a time with 2- 1/2 ton chain motors per side.

For the 4′ x 8′ sections, we bungied the flats to upside-down road cases. For the wide center section we made some small legs that were weighted on the back too.

One of the simpler, yet impactful elements to our design was a piano shell covered in chalk graffiti for our opening songs. We ended up getting two pianos for free from craigslist. We gutted them and painted them with chalkboard paint. One of the artists at the church was kind enough to share his skills and chalk them up.

The piano acted as a really nice feature point on the stage. Two extra leds made it really stick out.

For the most part we used fixtures we already had. We rented 20 Colorblast for Easter weekend, but found that our normal 16 that we own lit the set ok by themselves. As a true lighting guy, I thought it NEEDED the 20, but few people noticed when I had to return them.

We loved this set and ended up using it for a bit more than 2 months.

105 108 124 132 140 163 187 188 223 242 249 276 305 Pics for Jonathan Easter 2013 Journeychurch.tv

11 responses to Crossing Textures

  1. Kudos Steven and the rest of the team at Journey Church! This looks awesome and the framing looks very professional! I do have to admit that I’m sad you only used this for 2 months. $2500 ( I know part of this was renting lighting) seems like a good amount of money to only use for 2 months, but that’s just me. I do have a question (maybe I missed this part in the description), how did you anchor them? I would think that you would need to attach these walls to the floor and to some sort of support structure. Thanks for sharing this!

  2. Geoff,

    Thanks! We actually only used the set in the main room for two months. Last month we repurposed these set pieces for our youth Theater. They will be uses in there for at least a year probably more. Although our set did cost a bit, it is ar a significantly lower cost than many sets built by churches our size. We regularly have over 8,000 people attend our Easter services. If you look at my blog: Churchlights.blogspot.com it goes a bit more in detail with the budget. Also it tells about the lifting process. Once we lifted the crosses, we lowered them so that their weighted rested on the stage and the chain motors kept them upright. We did not need to anchor them because thier weight. If you pushed on them they swayed an inch or two, but not enough to matter. I hope this answers your questions.

    ,Steven

  3. Just a quick suggestion. We are in the process of creating something like this for our Christmas and Easter design.

    ***FOR ANYONE LOOKING TO USE PALLET PLANKS IN THEIR SET DESIGN PIECE***

    You don’t need to cut off the ends of the board and pull nails. A much easier and better way of getting the boards off is using a reciprocating saw, with a 12″ Bi Metal DEMO blade. These blades are meant to cut metal, wood and anything else you can think of. What you do is turn a pallet on it’s side and wedge the reciprocating saw blade in between the support board and the top/bottom board. Then cut through the nails. It’s best to start on one side and completely remove the the support plank on both sides. It will save you several hours of time. You can take apart a pallet in about 2 minutes this way. If you have any questions, let me know. I can send you a instructional video of how we did this!

    This set is awesome! Great job guys!

  4. What is the best way to find pallets? I love the look but just don’t know how to find them. Do you buy them? Is there a website?

  5. I would also be interested in an instructional video.

  6. Hey guys I was wondering if you had any photos of the window screens up close. We have fewer LED lights and I was wondering if I should use something more reflective.

  7. I was wondering if you could list the fixtures you used on your stage. Particularly the fixtures behind the pallet wall that shine out towards the stage floor. I think I have a handle on the pallet design we are trying to do. But I could use lots of advice on lighting fixtures as we have to buy most of what you all already had. The main difference is our stage is about 40′ x 25′ and the sanctuary only seats about 500.

    Thanks for any help in advance!

  8. We would enjoy making one of these for our new church plant–scheduled to start meeting in our new home (former car dealership) in a few months. Could you give us an idea of the height of your pictured cross? And the supply list–it is for TWO crosses, correct? Also, did you do something additional at the end of the process, such as cutting the “ragged” edges off the inside and outside of the cross cut-out? We would be interested in purchasing a video, especially if you’re willing to share your ideas about possible “mounting” options. In our situation, we would like to set our cross on an industrial dolly of some sort, complete with a locking wheel mechanism. Because of the height, the stability factor is a concern. What are your thoughts?
