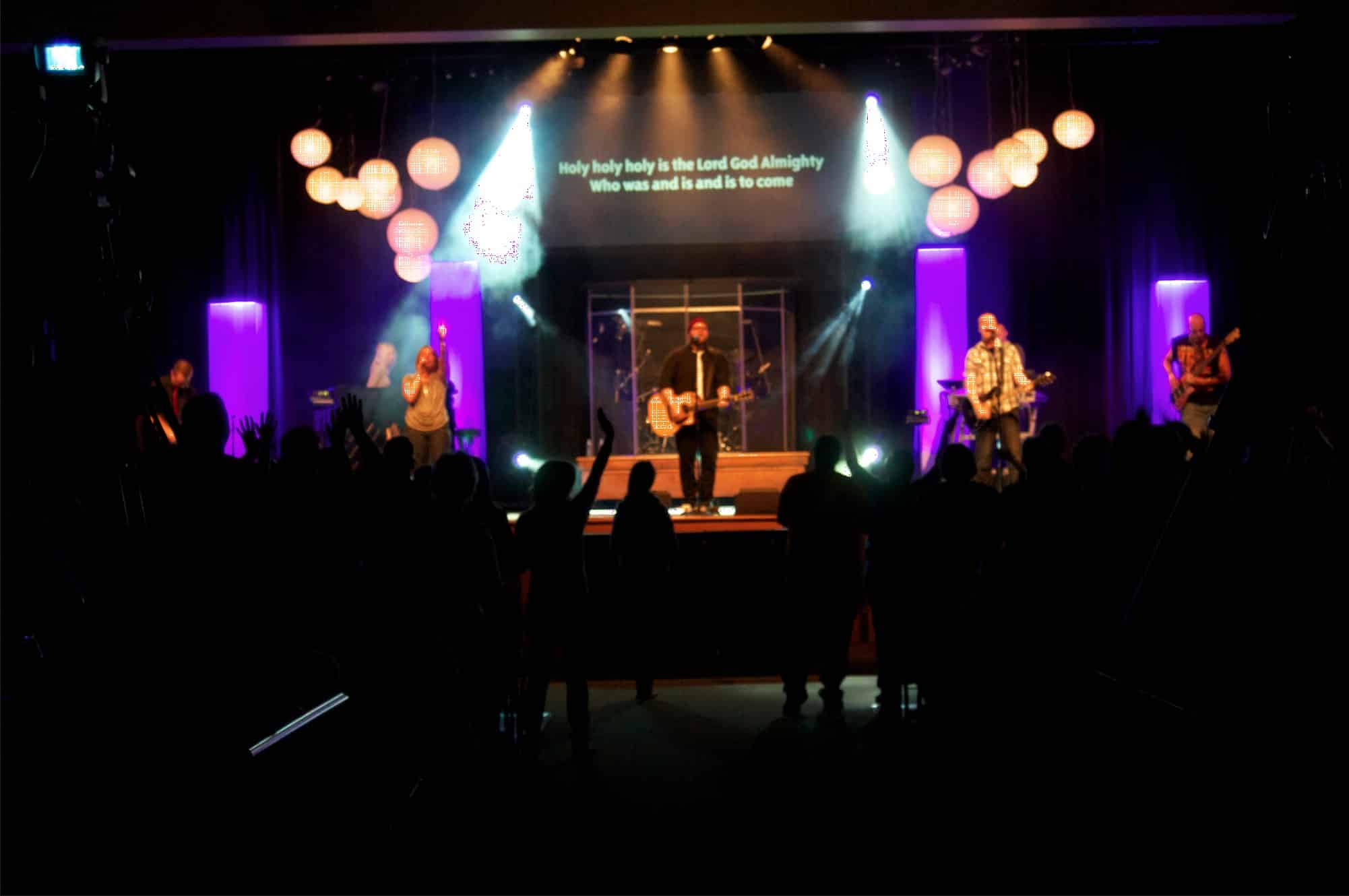

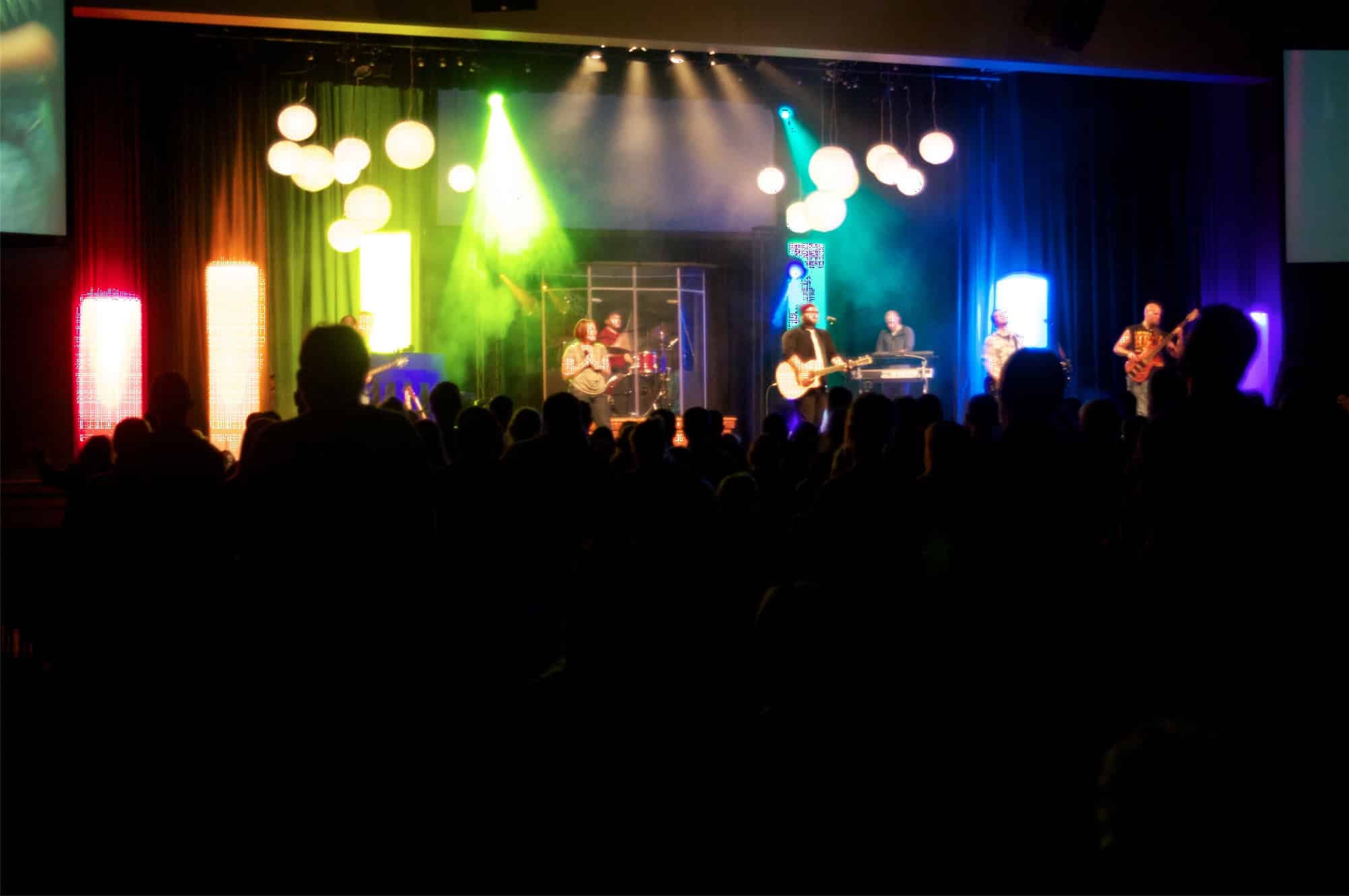

Tim Sherwood from Prairie Lakes Church in Cedar Falls, IA brings us these Coroplast light pillars.

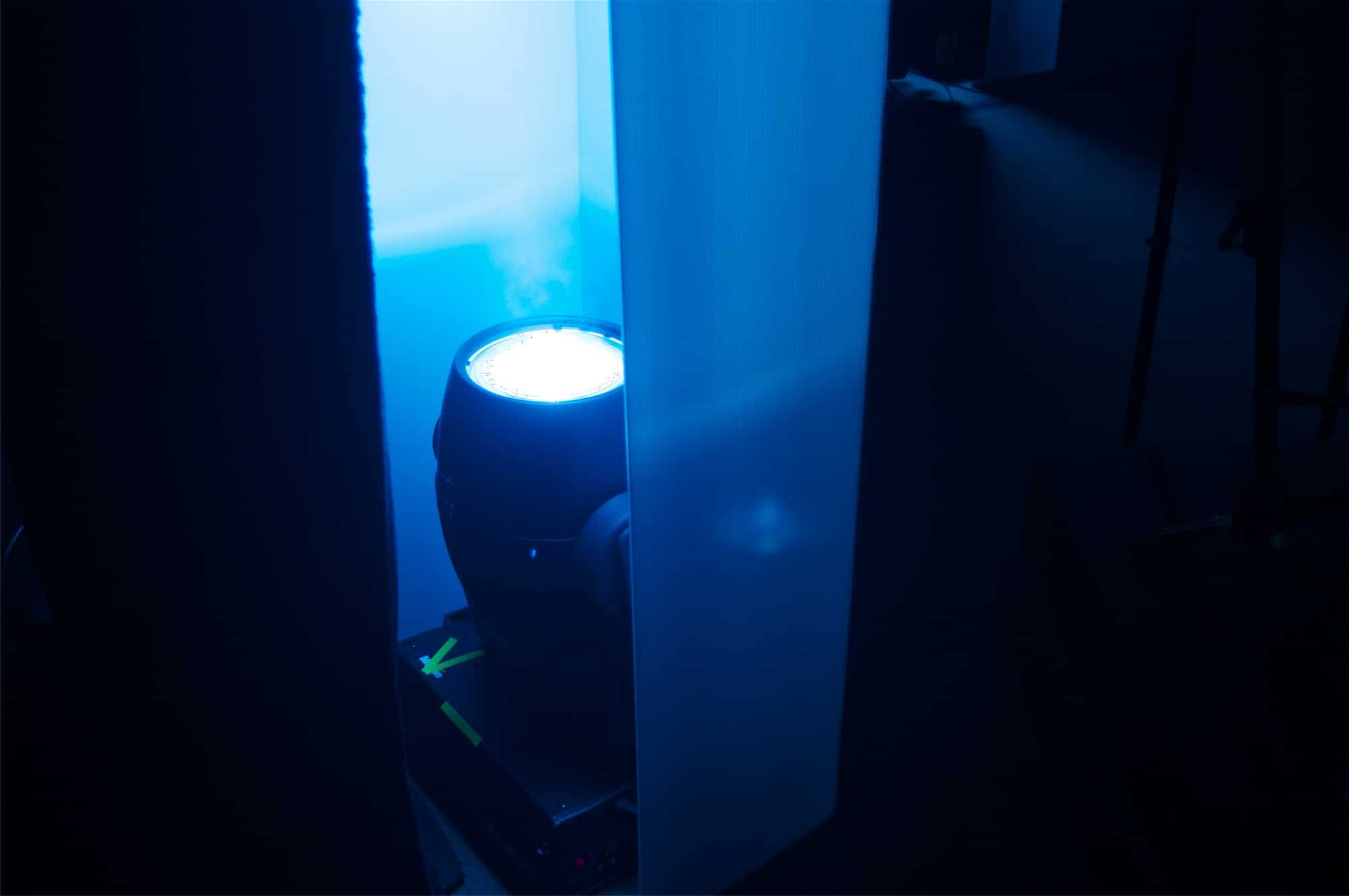

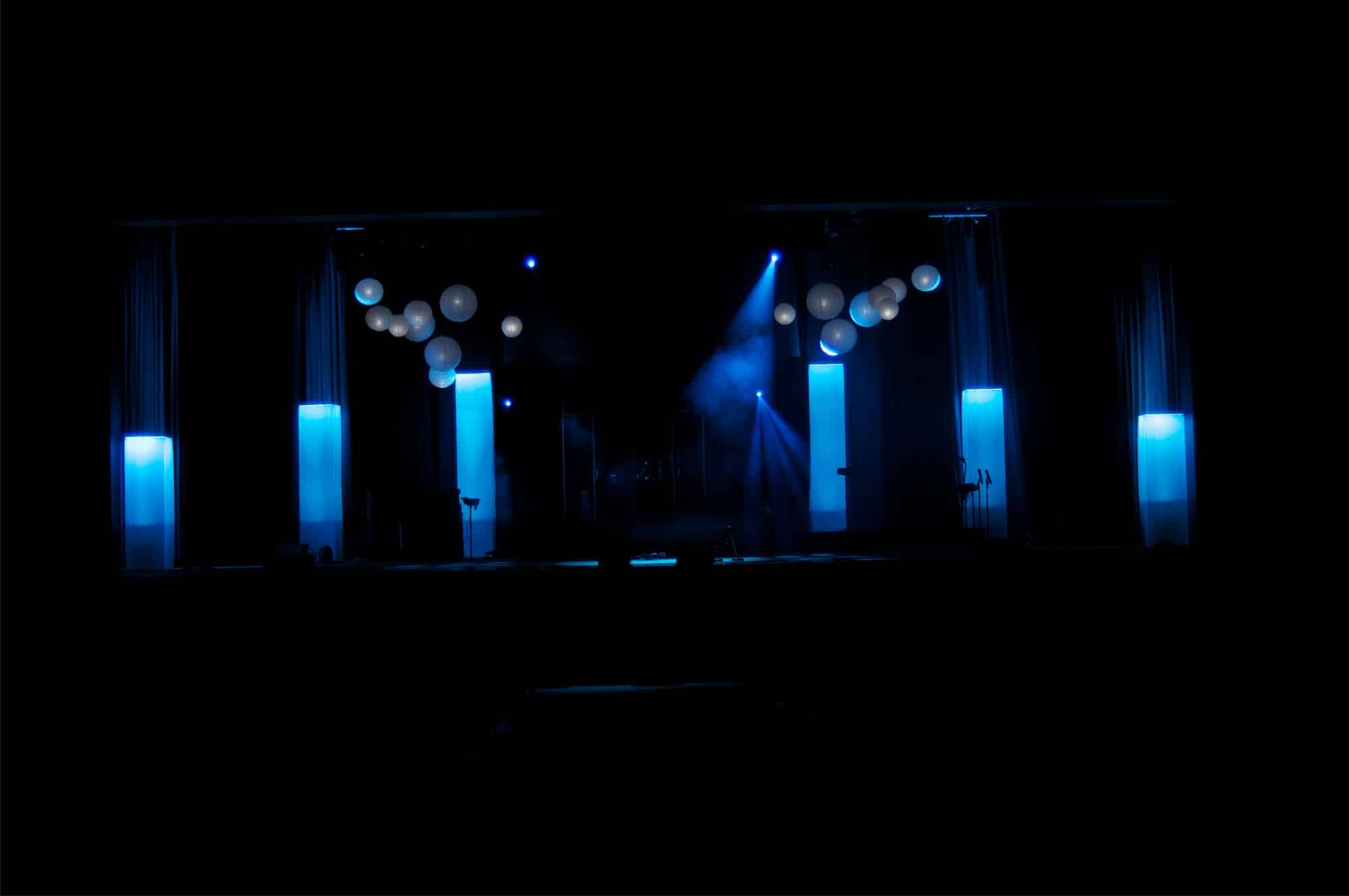

They created 6 Coroplast pillars at various heights: 6′, 8′, and 10′. Inside the pillars they used Mac600′s for color. The pieces of Coroplast cost about 12.50 for each 4×8′sheet.
To add another element to the design they hung some paper lanterns varying in sizes and heights. They had the lanterns on hand from a previous design minus 4 smaller ones that cost $6 for the lanterns and $10 for the cords.
Then they added a couple 10′ section of truss and hung 1 Mac550 and 1 Mac250 on each piece of truss.
They are a multi-site church with 2 other campuses and they made the pillars for those as well.
More from CSDI's Editor:
Do you feel intimidated by the "big dogs" of creativity? - on Faking CreativityWatch a worship set from Northstar Church. - on Worship Set Ideas
I write and speak about the creative process – especially for churches. Call me a resource for the church creative wanting to make their ministry better.
Thanks for posting this Jonathan. I appreciate all you do.
Thanks for sending it in, Tim! :)
Hi Tim -
Is it possible to put in touch with or give me the number to the place that you ordered your coroplast?
Also, how many sheets did it take you to build each column?
Thanks in Advance
Corey here is a link to the company I purchased from here in Iowa
http://www.yellowpages.com/cedar-falls-ia/regal-plastics?g=Cedar+Falls%2C+IA&q=Regal+Plastics
For the 6′ pillars it took 1 sheet of coroplast cut down from 8′ to 6′ obviously and one sheet for the 8′ , for the 10′ sections I used the leftover 2′ from the 6′ piece and used clear packaging tape to attach it to a full 4×8 sheet. Hope this helps
This is a great look.
You should look at spending $1200 on a set of 6 led pars so you can free up your Mac 600s
Yeah that would help a bit. Problem is we currently have a Hog 1k as our lighting board and it doesn’t run led’s our multi sites are using led’s though.
This look is incredible. Where did you find the custom coroplast sheets?
Hey Brandon, thanks for the compliment.
I purchased the coroplast from a local plastics dealer in my area. The sheets come in 4×8 so I had the company cut some down to 6′ and then I used the leftovers to make our 10′ tall pillars. I scored them to the same dimensions as the 4×8 sheets and simply used clear packaging tape to hold the 2 together. I then cut a lid and used some screws to attach it to the top of the pillars to hold some of the light in. I also cut a couple of 3 inch strips and attached them with screws into the back side of the pillars to help them hold there shape.
Hope this helps
Absolutely. It helps a lot. I’m a part of a very young church with limited stage space and funds, so finding new ways to up our stage presence is always a great help. I appreciate the post.
so Im wondering what type of coroplast is this. to my knowledge it is what is called “natural” colored coroplast and the vendors up north dont know it by that description…any ideas?
Luis what I purchased was plain old white. Any sign shop in your area should carry this corrugated plastic. Coroplast is just a brand name. When I purchased mine I asked for white and white is what I got. The name of the Vendor here in Iowa has multiple branches in the midwest I believe. Regal Plastics was where I purchased ours.
Hope this helps.
Don’t think LEDs would work with coroplast is you put the lights behind. LEDs’ light output is not enough to go through the coroplast. Well, that’s if you are using an LED light thats under $400 a piece.
Hey Danny our 2 multi-site campuses are using elation opti tri-pars and they work wonderfully but we did pay 550 a piece for them.
They look great !
If I may ask, what size Coroplast did you use ? 4mm or 10mm ?
and are the towers 3 or 4 sided, if 3 – why ?
to disipate the heat ?
Thank you for any help, we are still a “Portable Church” and these towers look great and seem to be very portable.
Hey Doug I used 4×8 10mm sheet. The way I scored them depended solely on the light that they were going around. At our main campus we are using Mac 600′s for our color wash and the 4×8 sheets would only wrap around on the sides had nothing to do with heat. At our other 2 campuses I was able to go around all 4 sides of our Elation opti tri pars and had a nice opening space on the back for all my cabling to go out of so the pillars would stay level.
These are an excellent choice for a portable church campus. If you use some screws you can easily remove the top cover and back supports and fold them up compact to go on the trailers and reassemble them Sunday morning. Hope this helps out.
We are going to try and use this idea for a student ministry event. However, we have some pretty cheap par cans, would those shine through the coroplast or would we need something stronger?
Hey guys – I’m late to this conversation but really appreciate the info!! I just built these light towers made with white (not clear/natural) coroplast – which I bought for $8.50 a sheet locally – and they look AMAZING. To answer one of the questions above – I use a much less expensive light to light them up with – the $99 LED by Venue (thinpar 64, which can be now found for as cheap as $75) and they look just as good as the pictures above! A GREAT way to give your stage setup some juice for not much money!
