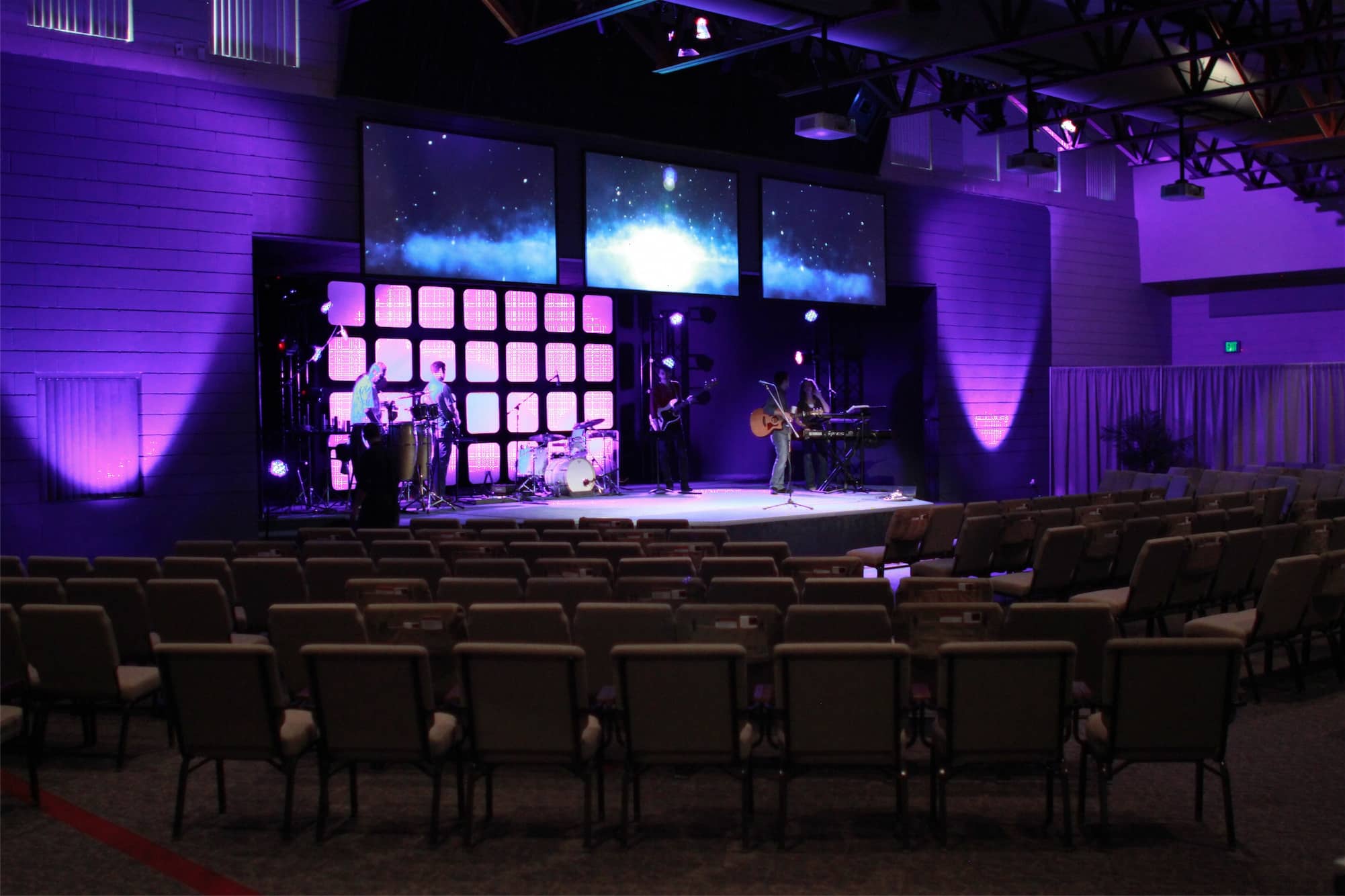

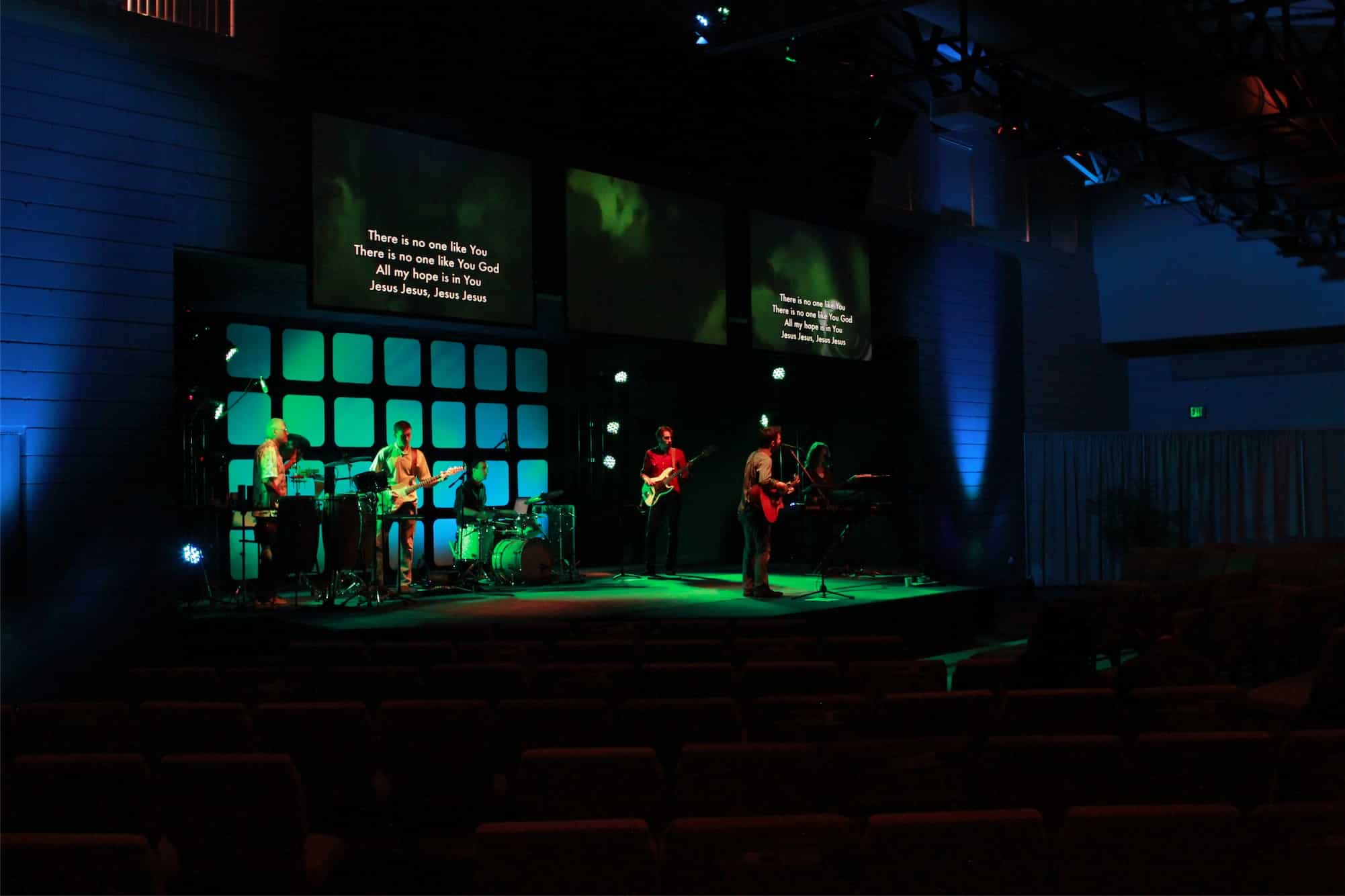

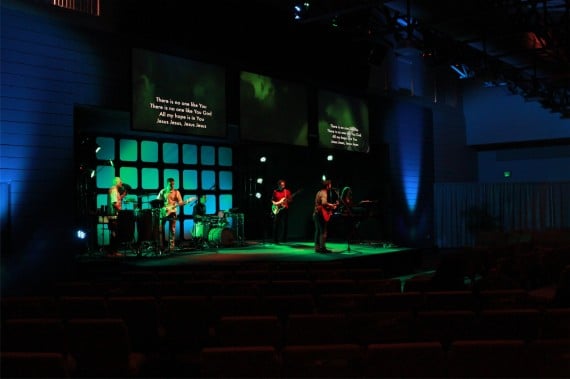

Duke Dejong brings us this stage design that CCI Solutions and Brian O’Morrow came up with for Catalina Church of Midtown in Tucson, Arizona.

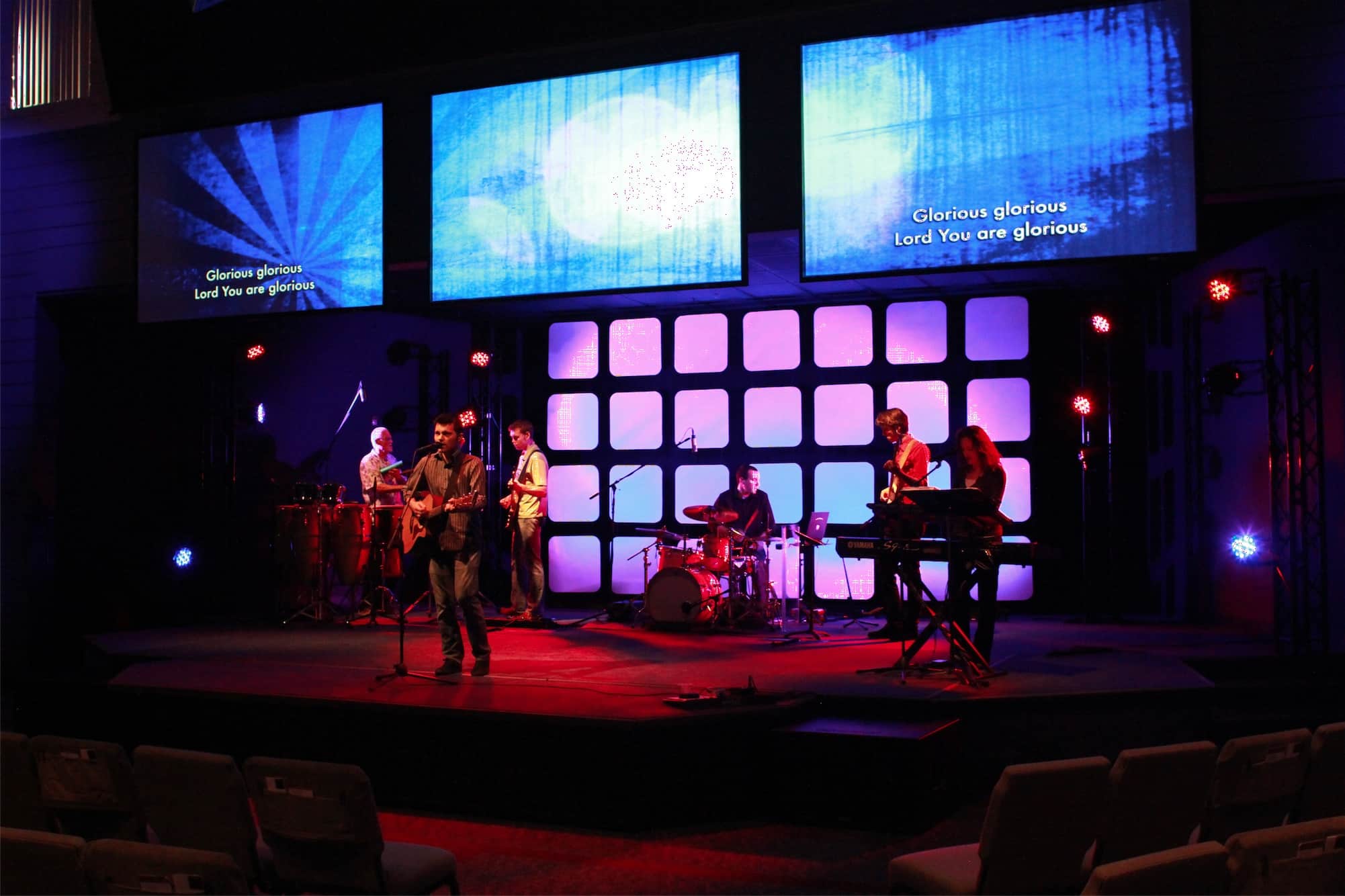

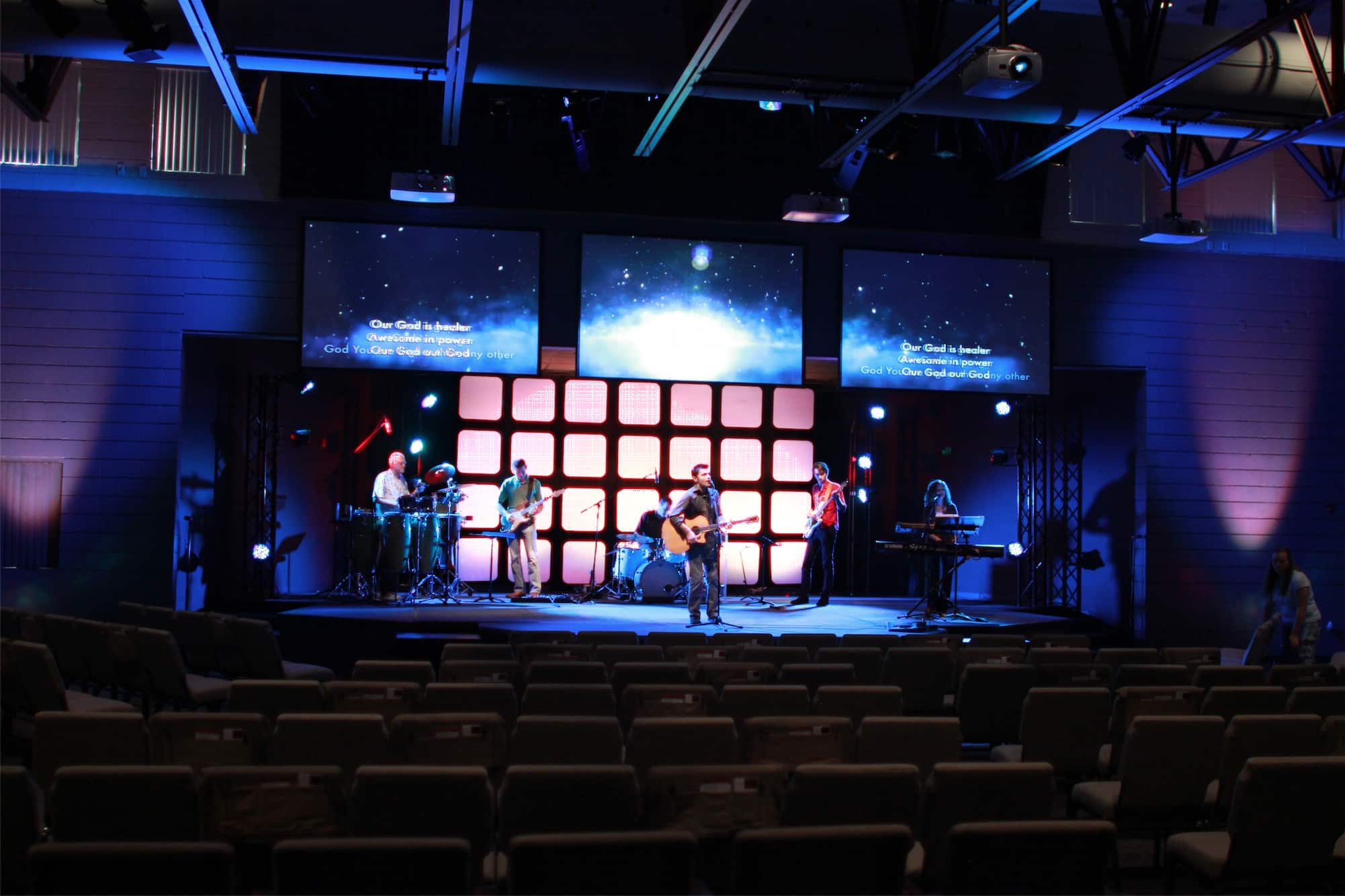

Catalina Church started by designing and implementing 2′x2′ squares of white Coroplast across the back of the stage. They used string to hang them. Then Duke and CCI Solutions came in to add the three screens across the top with a Matrox TripleHead2Go. This gave the look of one continuous image stretched across the three screens.
They also added a Jands Vista lighting console and 18 Elation ELED RGB Zooms to the stage.
More from CSDI's Editor:
What a helicopter optical illusion can teach us about creativity. - on Faking Creativity7 great announcement video examples (for use in-service). - on Church Ideas Blog
I write and speak about the creative process – especially for churches. Call me a resource for the church creative wanting to make their ministry better.
Looks great… just asking, why is the set not centered with your new screens?
It actually is centered, It just happens that none of the pics. Are from straight on. It’s an optical illusion. :-)
very mysterious :D
Nice
Fantastic design. Would love to see projection across those squares!
That would be cool, unfortunately the ceiling is super low for most of the stage and there isn’t room to rear project. Love the idea, just wouldn’t work well for this particular space.
Yeah, very true. From stage to roof, the space our church has is only 3m. Projection is difficult for sure!
What lights are you using on the far side pieces? Looks like they give off a great, wide throw.
All of the color is coming from 18 Elation ELED RGB Zoom fixtures. They zoom from 10-60 degrees so you can get a very narrow beam out of them or a super wide wash. They work great, my only slight complaint with them is that the fans are a tad noisy (manageable, just a tad noisy).
Hi what software are you using for lyrics projection?
Pro presenter 4 with the advanced module and a Triple Head2Go.
Did you put black cloroplast over the front of the clear?
Nope, just a dark colored fabric behind the squares. High contrast is is a lighting designer’s good friend.
What did you use to cut the clear coroplast?
The squares? Brian and his team used scissors, nothing fancy.
hey, looks cool! just curious how you’re lighting the coroplast…is it front or rear lit?

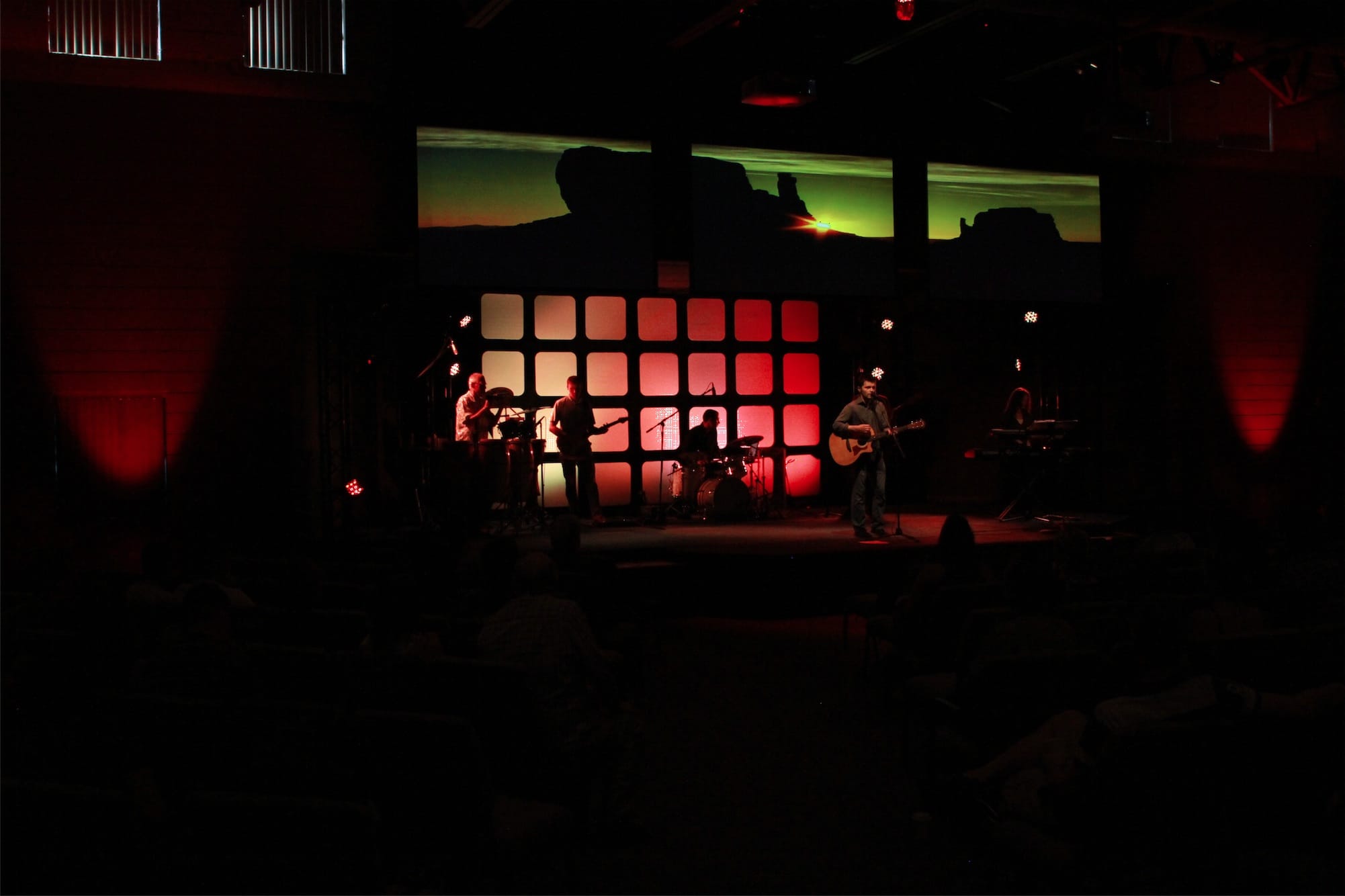

There are some strip LED lights (church already owned these, don’t remember which ones they are) right under the squares up lighting them, then I had a few of the Elation LED fixtures we added hitting them from the side in order to add some interesting patterns and extra color.
How did you guys make those squares?
Sorry Luis, didn’t see this. The squares were cut out by hand out of 4′x8′ sheets of choroplast. No magic, just some diligent work by the Worship Pastor and some volunteers.
Luis,
These squares were easy to make. 22″ squares from 4′x8′ sheets of white coroplast. We used a sheet of 1/8′ plywood as a big cutting board. We rounded the corners with a sharp blade and a gallon of paint to get a consistent rounded corner without any measuring or marking:)
how much was the cloroplast material all together? and any idea where i could find some
I can usually find choroplast at Fast Signs for $20-25 per sheet max. There are some places online too, I just usually find getting it locally is easier. I’m not sure how many total sheets were used, but they come in 4′x8′ sheets, so I’m guessing 5-6.
the center piece with the squares, are you lighting those with those long led strips, and are they lighting from behind? thanks
They are lit from the front two different ways. They get their main color from LED strip lights below the squares and then there are two bigger, zoom-able LED fixtures shooting across the squares to break it up a bit and allow for some variation. You can see a close up picture of that here: http://dukedejong.smugmug.com/Churches-CCISolutionsFinished/Catalina/i-wHDPxXc/0/X3/IMG7363-X3.jpg
More pictures of the stage/room can be found here: http://dukedejong.smugmug.com/Churches-CCISolutionsFinished/Catalina/18976955_BfdgC5
I really like this idea. What kind of string did you use and how did you attach the squares to the string so evenly.
Collin, I’m glad you like it. We tried a couple of ways to get the squares to hang evenly, and we ended up being very practical. We used a spool of thick string from Ace, measured and hung the strands of string. Then we used clothes pins to hold the coroplast in place and used a glue gun to fasten them (hardened fast enough to avoid slippage). We found that rather than measure each gap between squares, a person across the room giving direction worked better.
